G2129 致新代理商 GMT 功放系列 电平转换器
| Part Number | VDD (V)min. | VDD (V)max. | CH Vr+Vcom | IOUT(mA) Vr, Vcom | S/R(V/us) Vr, Vcom | BW(M Hz) Vr, Vcom | ISC(mA) Vr, Vcom | Note | Package |
| G2129 | 1.2 | 5.5 | 1-2-4 | 5 | 1.2 | 100 | / | 1-2-4-Bit Bidirectional Level Shift, Push-Pull I/O, Data rate 100Mbps |
SC-70-6/ AQFN1.7X2.0-12 |

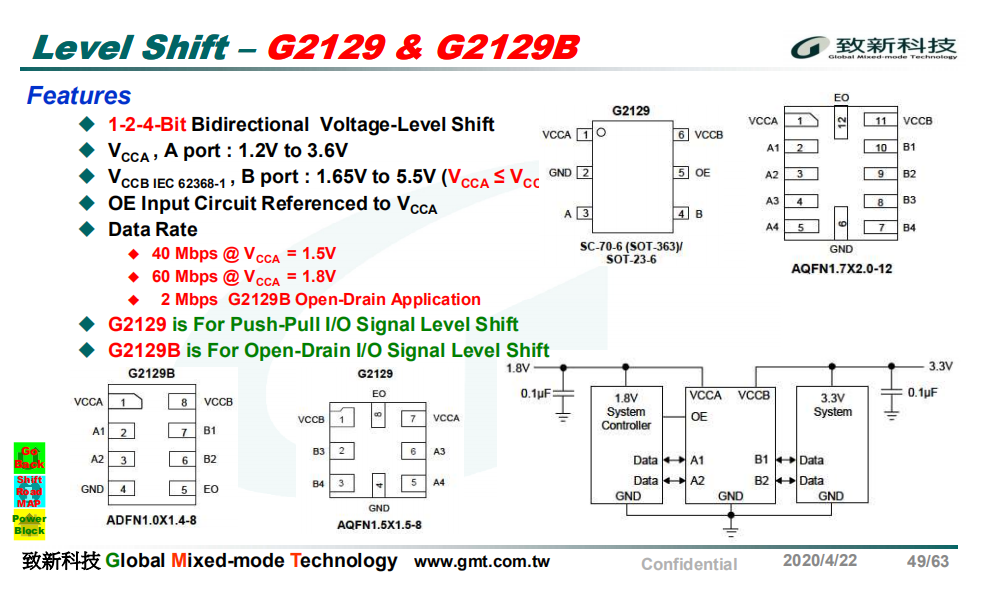

致新G2129 1-2-4-Bit Bidirectional Voltage-Level Translator with Automatic Direction Sensing and ±15kV ESD Protection
General Description
This 4-bit noninverting translator uses two separate configurable power-supply rails. The A port is de-signed to track VCCA. VCCAaccepts any supply volt-age from 1.2V to 3.6V. The B port is designed to track VCCB. VCCBaccepts any supply voltage from 1.65V to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes. VCCAshould not exceed VCCB.
When the enable-output (EO) input is low, all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or power down, EO should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
The G2129 is designed so that the EO input circuit is supplied by VCCA.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Features
- 1.2V to 3.6V on A port and 1.65V to 5.5V on B port (VCCA ≤ VCCB)
- VCC Isolation Feature-If Either VCCInput Is at GND, All Outputs Are in the High-Impedance State EO Input Circuit Referenced to VCCALowPower Consumption, 5μA Max ICC
- No Power-Supply Sequencing Required-Either VCCAor VCCBCan be Ramped First
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100mA PerJESD 78, Class II
- ESD Protection Exceeds JESD 22
– A Port 2500V Human-Body Model (A114-B) 1500V Charged-Device Model (C101)
– B Port±15kV Human-Body Model (A114-B)1500V Charged-Device Model (C101)
- SC-70-6 (SOT-363), SOT-23-6, SOT-23-8, AQFN1.7X2.0-12 and AQFN1.5X1.5-8 Package
Ordering Information
| ORDER NUMBER | MARKING | TEMP. RANGE | PACKAGE (Green) |
| 致新G2129TL1U | 219x | _40°C to +85°C | SC-70-6(SOP-363) |
| 致新G2129TB1U | 2129x | _40°C to +86°C | SOT-23-6 |
| 致新G2129TM1U | 2129x | _40°C to +87°C | SOT-23-8 |
| 致新G2129AE1U | 2129 | _40°C to +88°C | AQFN1.7X2.0-12 |
| 致新G2129A71U | 29 xx | _40°C to +89°C | AQFN1.5X1.5-8 |
Note: TL: SC-70-6 (SOT-363) TB: SOT-23-6 TM: SOT-23-8 AE: AQFN1.7X2.0-12 A7: AQFN1.5X1.5-8
1: Bonding Code
U: Tape & Reel
Pin Configuration Typical Application Circuit
